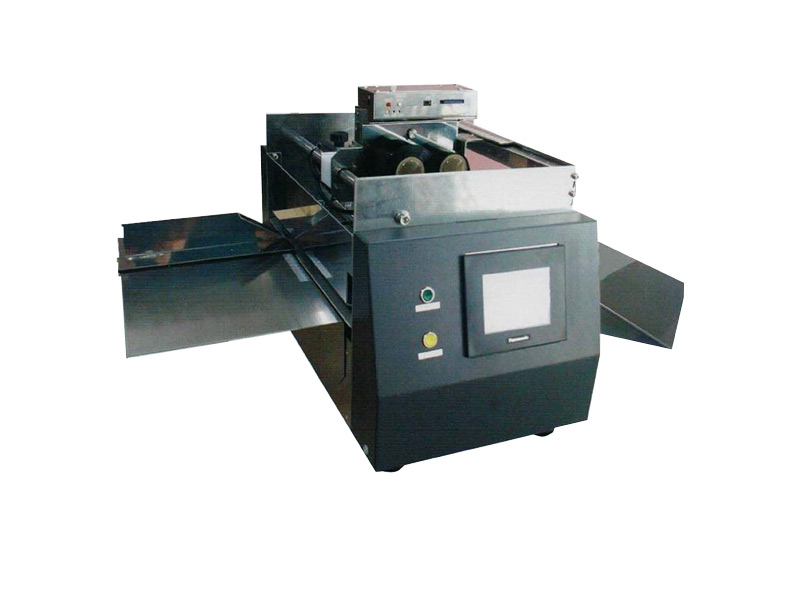

Thermal Transfer Over Printer
SMP-HP series
SMP-HP1, SMP-HP2, SMP-HP3
Easy operation with touch panel! A thermal direct printer of the manual feed type.
It is a small type and is ideal for small quantity multi-quality printing in the office.
If you feed by hand one by one, it automatically prints and feeds.
1 inch type limited to printing of date printing and lot number etc.
2 inch type and 3 inch type with enough printing space such as batch display.
You do not need a PC near the machine body.
SMP-HP4
A thermal direct printer of the manual feed type used by connecting with a personal computer.
It is a small type and is ideal for small quantity multi-quality printing in the office.
If you feed by hand one by one, it automatically prints and feeds.
Print content can be set freely by dedicated application as long as it is within the printing area, as with the higher model. Print output can be outputted from a personal computer on which a dedicated application has been installed in advance, and versatility is excellent.
Print area 106 mm x 200mm
Specification list
SMP-HP1, SMP-HP2, SMP-HP3
| Type | SMP-HP1 | SMP-HP2 | SMP-HP3 |
| Head size | 1 inch | 2 inches | 3 inches |
| Maximum printing | 32×100 | 53×200 | 74×200 |
| Work size | 50~340(W)・125~400(L)※1 | ||
| Printing method | Thermal ribbon thermal transfer method | ||
| processing power | 15 to 60 sheets / minute * 2 | ||
| Print data | Data: SD card call Touch panel or personal computer (USB connection) | ||
| Feed method | Manual feed type | ||
| Printing speed | 200mm/sec(standard) | ||
| Dod density | 300dpi | ||
| Editing software | Direct workshop EW · SW | ||
| Form factor(Body) | 290(W)×430(H)×500(D) | ||
| power supply | AC100V/150W・50/60Hz | AC100V/300W・50/60Hz | |
SMP-HP4
| Type | SMP-HP4 |
| Head size | 4 inch |
| Maximum printing | 106×200 |
| Work size | 50~340(W)・125~400(L)※1 |
| Printing method | Thermal ribbon thermal transfer method |
| processing power | 15~60Sheets / minute * 2 |
| Print data | Personal computer (USB connection) |
| Feed method | Manual feed type |
| Printing speed | 200mm/sec(standard) |
| Dod density | 300dpi |
| Editing software | Direct workshop E · S |
| Form factor(Body) | 290(W)×430(H)×500(D) |
| power supply | AC100V/150W・50/60Hz |

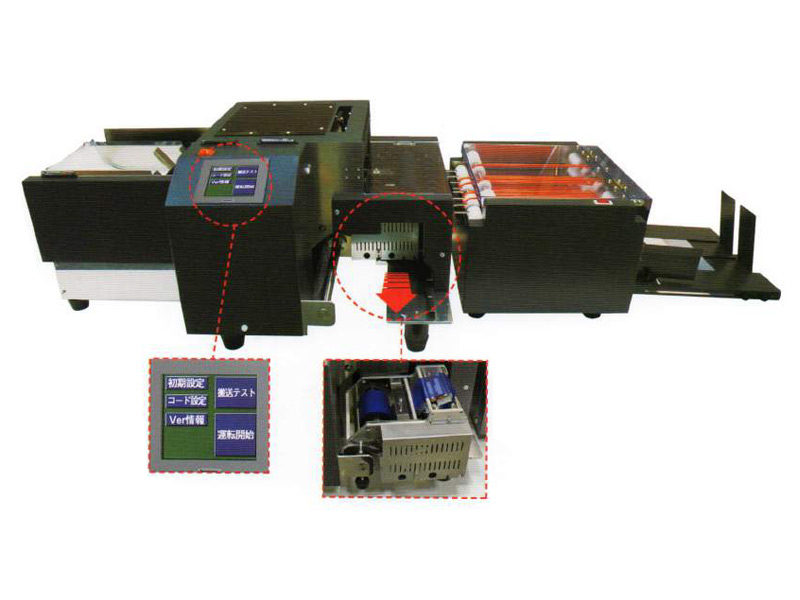

Duplex Printer UB series
High-spec thermal printer capable of double-sided thermal printing. Depending on the application, you can select the head size on the bottom surface.
A printer that can print on both sides simultaneously.
Both sides 4 inches type. Surface 4 inches 2 inches back side.
Surface 2 inches 4 inches back side. There are abundant variations of choices depending on the customer’s purpose such as 2-inch type on both sides.
If you select the ribbon, you can also print different colors on one side and boasts of design.
Easily manage print contents on the top and bottom sides with a PC
- Head up when there are few print data such as date.
- Save ribbon in proportion to data length
- Various prints reduce bags and film items.
- Printing in the forward, reverse, vertical, horizontal, and 4 directions is possible.
- Printing of various 2D codes and image files such as QR codes.
Specification list
|
Model |
CPS-UB44II |
CPS-UB42II |
CPS-UB24II |
CPS-UB22II |
|
Work size |
70~340(W)×110~400(L) |
|||
|
Printing method |
Thermal ribbon thermal transfer method |
|||
|
Print head |
4 inch 12dot×2 groups |
4+2 inches 12dot×2 groups |
2 inches 12dot×2 groups |
|
|
Print area |
106×200mm(L)×2 groups |
106×200mm(L)+53×200mm(L) |
53×200mm(L)×2 groups |
|
|
Printing speed / Number of processed sheets |
200 mm / sec [100 mm / sec ~ 250 mm / sec (change setting possible)] / 40 sheets / (A 5 size) * 1 |
|||
|
Character type |
barcode(2of5[ITF], JAN[13.8], 2of7[NW7], 3of9[CODE29], CODE・128[CODE SUBSET A, B, C]) ・OCR · line · CR code · 8 kinds of Win font · vertical and horizontal enlargement (1 to 4 times) · ANK · Chinese character |
|||
|
Print position / character direction |
Free setting(In some areas there is a dead zone, and there is a position where printing is impossible.) 0°/90°/180°/270° |
|||
|
External dimensions |
590×330×370 |
|||
|
Power supply / weight |
AC100V・600W ・50/60Hz ・40kg |
|||
|
option |
Editing software · various feeders · various stackers · neutralizer |
|||
* 1 The number of sheets to be processed varies depending on the state of the workpiece and the presence or absence of serial.
